What Is Vacuum Casting?

Polyurethane vacuum casting is a specialized technique for making high-fidelity copies of master patterns using inexpensive silicone molds and pourable casting resins. Copies made in this way demonstrate the same quality as plastic injection molded parts while taking only a fraction of the time and expense to produce.

Advantages Of Vacuum Casting

Low cost for molds

Molds can be made in a few days

Many types of polyurethane resins are available for casting, including overmolding

Cast copies are highly accurate with excellent surface texture

Molds are durable for 20 or more copies

Perfect for engineering models, samples, rapid prototypes, bridge to production

Vacuum Casting Service

We provide a comprehensive turnkey solution for generating master patterns and cast replicas from your CAD designs. Our services extend beyond crafting high-quality molds; we also offer an extensive range of finishing services, including painting, sanding, pad printing, and more. Our expertise will assist you in creating components for showroom-quality display models, engineering test samples, crowdfunding campaigns, and beyond.

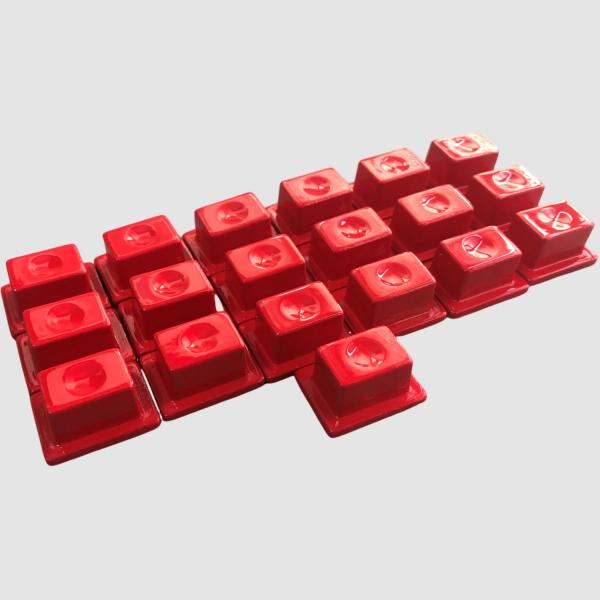

Are you in need of high-quality plastic prototypes swiftly? Polyurethane vacuum casting could be your perfect choice. Barana Rapid is celebrated for its vacuum casting service that delivers showroom-quality display models, engineering prototypes, crowdfunding samples, and more. Naturally, all parts are meticulously finished with professional painting, printing, and machining.

Advantages of Vacuum Casting

• Cost-Effectiveness: Molds are inexpensive to produce.
• Quick Turnaround: Molds can be created in just a few days.
• Material Diversity: A wide range of polyurethane resins are available, suitable for various applications including overmolding.
• High Accuracy and Quality: Cast copies boast excellent accuracy and surface texture.
• Durability: Molds are robust, capable of producing 20 or more copies.
• Ideal for Prototypes: This method is perfect for engineering models, samples, rapid prototypes, and as a bridge to full production.

Tolerance of Vacuum Casting

Material of Vacuum Casting

Vacuum casting provides a diverse selection of materials, encompassing a variety of polyurethane (PU) and epoxy resins. These materials are capable of mimicking the characteristics of assorted thermoplastics, elastomers, and both rigid and flexible rubbers. The choice of material can be customized to fulfill particular needs, including mechanical robustness, pliability, clarity, or thermal endurance.

Materials for Vacuum Casting
You can choose a wide range of vacuum casting materials depending on the peculiarities of your project. Here are some choices for you:
Image	Materials	Description
	ABS	ABS is a thermoplastic polymer, is widely used due to its exceptional resistance to impact, temperature, and chemicals. It also offers a sleek surface finish and is easy to produce and handle.
	POM	POM, also known as acetal or Delrin, is a type of engineering thermoplastic that boasts exceptional dimensional stability, stiffness, temperature resistance, and impact resistance.
	PP(Polypropylene)	Polypropylene (PP) is a material that is typically white and translucent and is resistant to corrosion while also possessing good toughness. Its most notable characteristic is its versatility, as it is suitable for use in a variety of processing methods and applications.
	PE(Polyethylene)	Polyethylene is odorless, non-toxic, feels like wax, has excellent low-temperature resistance (minimum operating temperature can reach -100~-70°C), has good chemical stability, and can withstand most acid and alkali erosion (not resistant to oxidation) nature acid)
	PC(Polycarbonate)	Polycarbonate (PC) is an amorphous thermoplastic known for its exceptional transparency and impact resistance. It also possesses strong electrical insulating properties and moderate chemical resistance.
	PMMA(Polymethylmethacrylate)	Polymethylmethacrylate, also named Acrylic. Acrylic is a highly versatile material known for its exceptional transparency, chemical stability, and resistance to heat, cold, and corrosion.
	PEEK	PEEK boasts exceptional mechanical strength, self-lubrication, impact resistance, and flame retardancy. It is also highly resistant to acid, alkali, and other chemical corrosion, hydrolysis, wear, fatigue, stripping, and radiation.
	Nylon	Nylon is impressive mechanical properties such as heat and wear resistance, chemical resistance, and self-lubrication, polyamide fiber also possesses flame retardancy, a low coefficient of friction, and is easy to manufacture.
	PS (Polystyrene)	Polystyrene (PS) is a polymer made from the monomer styrene, a liquid hydrocarbon that is commercially manufactured from petroleum. At room temperature, PS is normally a solid thermoplastic but can be melted at higher temperatures for molding or extrusion, and then resolidified.High-impact strength, low-cost resin with a wide range of options.
	Elastomer	Elastomers are polymers with viscosity and elasticity and therefore are known as viscoelasticity. The molecules of elastomers held together by weak intermolecular forces generally exhibit low Young’s modulus and high yield strength or high failure strain. Examples are Natural rubber, Silicone Polyurethanes, and Polybutadiene, Polyurethane plastic resin.

Functional Prototyping: Vacuum casting allows for the production of functional prototypes that closely mimic the performance of the final product. Parts can be manufactured with similar mechanical properties, such as strength, flexibility, and impact resistance, enabling testing and validation before investing in full-scale production.

Reduced Design Constraints: Vacuum casting can accommodate complex geometries, thin walls, and intricate details that may be challenging or expensive to achieve through traditional manufacturing methods. This flexibility in design allows for greater creativity and innovation in product development.

Overmolding Capabilities: Vacuum casting can facilitate overmolding, which involves combining multiple materials to create parts with varied properties or layered structures. This method is beneficial for incorporating soft-touch grips, gaskets, or multi-colored elements into the final product.

Confidentiality and Intellectual Property Protection: Vacuum casting services typically prioritize confidentiality, aiding in the protection of sensitive design details. This is particularly vital during the prototyping or pre-production phases when the secrecy of new product designs is paramount.

Surface Finishes for Vacuum Casting
Barana Rapid can build unique surface layers for your vacuum casting parts using a wide range of surface finishes. These finishes assist you in meeting the aesthetic, toughness, and chemical resistance needs of your products. We can provide the following surface finishes based on your material selection and part application:
	Name	Description
	Glossy	A grade finishes are made using a diamond buffing process and yield shiny and glossy surfaces on injection molded parts.
	Semi-glossy	B grade finishes use grit sandpaper to produce parts with a slightly rougher finish than grade A parts. Custom molded plastic parts that undergo B grade finishing have a matte surface texture.
	Matte	C grade finishes use grit sanding stones to produce a rough, uneven surface. Injection plastic parts that undergo C grade finishing have a matte surface texture.
	Textured	D grade finishes use grit and dry glass beads or oxide to produce a very rough textured finish. Depending on the type of material used, products can have a satin or dull finish.

What Separates Barana Rapid’s Inspection Processes from the Rest?

Careful measurement, inspection and testing are necessary to ensure the conformance of your parts. We perform multiple inspections at every step of the product development journey, from incoming material verification to final 3D scanning. You will receive complete digital files and Certificates of Compliance so you can meet your own regulatory and performance goals.

An International Team with Unparalleled Experience

Quality inspection relies not only upon using advanced digital equipment but also having highly trained personnel with years of experience. As parts become more complex and tolerances more demanding for advanced applications, precision measurements conducted by professionals are the only way to ensure perfection.

Inspections and Review for Every Stage of Production

Barana Rapid ensures quality throughout the entire process by offering these inspection and review services:

Thorough verification of incoming materials

Design for manufacturability reviews for all provided quotes

Contract reviews following the receipt of purchase orders

First article and in-process inspections

Comprehensive final inspections and testing, complete with necessary reports and certifications.

Since 2015, our expertise in the prototyping and production industry has aided both start-ups and established brands in crafting prototypes and products that stand out in the global market. Our commitment to quality and precision is reflected in our advanced machinery and the dedicated team of professionals who work diligently to deliver your products on time. We offer rapid prototyping services at competitive prices, ensuring you receive parts with exceptional precision through cutting-edge manufacturing processes such as CNC machining, 3D printing, vacuum casting, and sheet metal fabrication—all within short lead times.

With precision CNC machining services, Barana Rapid is your ideal partner to create precision machined prototypes and parts. Our standard CNC machining tolerances for metals is ISO 2768-f and for plastics is ISO 2768-m. We can also achieve special tolerances as long as you indicate your requirements for your drawing.

We also provide low-cost manufacturing of high-quality plastic parts. Our vacuum casting services offer short-cycle solutions for creating high-quality prototypes and low-volume production parts. Vacuum casting, or urethane casting, is a method that utilizes a silicone mold and a 3D printed master to produce vacuum-cast parts with consistent performance and production-grade quality. This technology does not require a costly initial investment, enables flexible and economical production, and hardens thermoplastic polyurethane in silicone or epoxy molds. The outcome is a vacuum-cast part that retains the shape of the original master model. The final dimensions of a vacuum-cast part are determined by the master model, the part's geometry, and the selected material.

Our sheet metal fabrication factory offers top-tier custom services, leveraging extensive capabilities in sheet metal stamping, cutting, bending, welding, precision CNC machining, and assembly to deliver superior quality parts. NOBLE's manufacturers employ cutting-edge technology and skilled engineers to guarantee sheet metal parts of unmatched quality, precision, and reliable performance.

Barana Rapid boasts over a decade of expertise in small-batch manufacturing, backed by a stellar team and robust suppliers to fulfill all your small-batch production requirements. Leveraging our extensive experience in small batch molding and our team of exceptional engineers, we are committed to efficiently managing all your small batch machining projects. Our strong supply chain and state-of-the-art equipment for various manufacturing technologies enable us to execute with precision. We guarantee that our wholesale prices will be competitive, we will uphold stringent quality standards, aid clients in design optimization, select the most suitable CNC processing techniques, minimize costs, and facilitate swift mass production. This ensures the delivery of cost-effective and high-precision products to you.

Regardless of the manufacturing process employed, high-quality surface finishing services can enhance both the appearance and functionality of your components. We provide a range of superior metal, composite, and plastic surface finishing services to realize the prototype or component you envision.

Our Goal is to continuously supply affordable high-quality prototypes and custom low-volume products for production intent. Our business model is based upon providing cost effective solution that benefits customers at all stages of their product development. Our biggest asset is our customer base, which has grown rapidly through customer’s word-of-mouth around the world; amongst them, it covers from independent inventors or designers to large scale Industrial, Commercial, Medical, Automotive and even Aerospace companies.
